Vibration grinding machine-workpiece isolation fixture

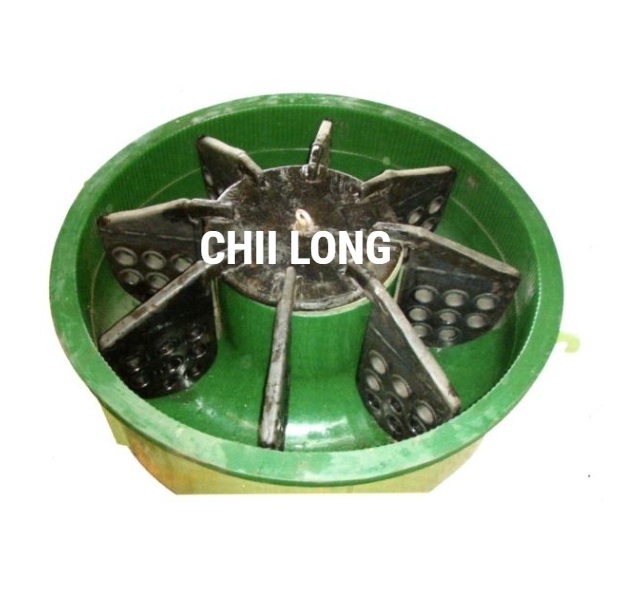

Workpiece Isolation Fixture – Movable Type

Application:
A movable isolation fixture designed for grinding and polishing processes. Each workpiece is placed into a separate compartment to prevent collision, scratches, or damage during processing.

Features:

Movable design for easy assembly and operation.

Effectively prevents workpieces from colliding with each other.

Ensures consistency and high-quality surface finishing.

Custom designs can be provided according to customer requirements.

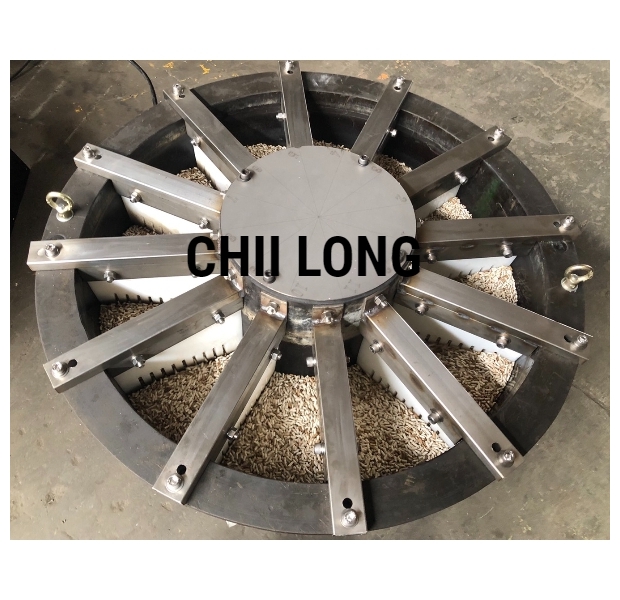

Vibratory Finishing Machine – Workpiece Isolation Fixture (Fixed Type)

Application:
A customized fixed-type isolation fixture designed according to customer requirements. It is especially suitable for small and delicate workpieces that are prone to damage from collisions during the grinding or polishing process.

Features:

Fixed-type structure with 12 individual compartments.

Ideal for small workpieces requiring protection against impact.

The rubber plate at the compartment bottom can be cut into long slots according to product characteristics, allowing media and workpieces to tumble more effectively, thereby improving grinding efficiency.

Custom designs available to meet specific customer requirements.
