    Tube Grinding Machine-TP

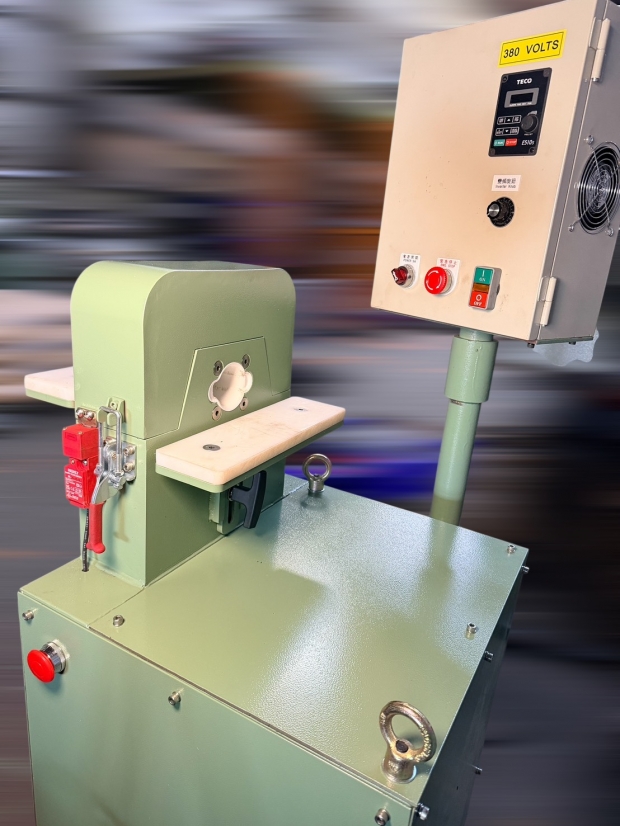

    Tube Grinding & Polishing Machine

    Applications
    Designed for grinding and polishing the outer surface of round metal tubes. By selecting the appropriate abrasive belt, users can achieve the desired surface finish.
    (Machine specifications can be customized according to tube dimensions.)

    Specifications

    Processing Tube Diameter: 15–150 mm (adjustable)

    Motor Power: 3 HP

    Spindle Speed: 3065 RPM

    Machine Power: 2.25 kW

    Voltage: 220 V

    Applicable Materials: Steel, stainless steel, and various alloys

    Machine Dimensions (W × L × H): 480 × 750 × 520 mm
