⚙️Customized Equipment⚙️

Function & Applications
Large slag and furnace residues are crushed and mixed through internal baffles inside the chamber, enabling effective grinding and pulverization of various raw materials such as chemicals, coatings, minerals, and food products.

The machine can be used with a wide range of grinding media, including zirconia balls, alumina balls, stainless steel balls, and glass beads, to meet different processing requirements.

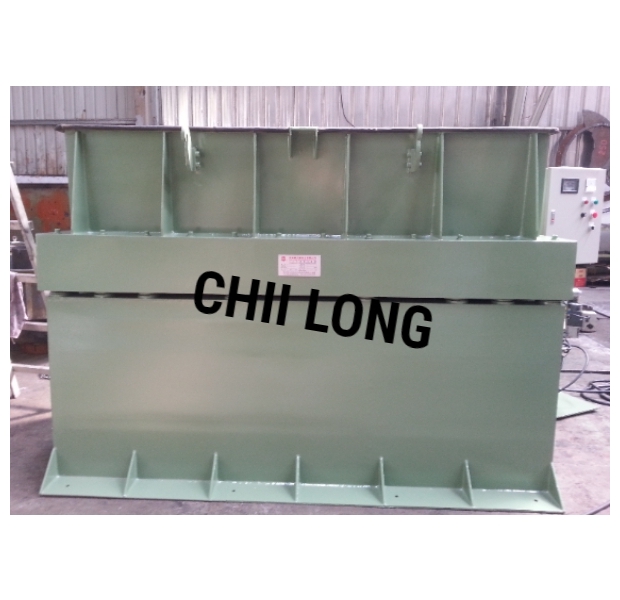

Customized Equipment – 2m Horizontal Detachable Double-Chamber Vibratory Finishing Machine

Description:
A customized extended double-chamber horizontal vibratory finishing machine with a total length of 2 meters. Designed with a detachable structure, the chamber length can be adjusted according to workpiece dimensions. The internal fixtures are also detachable, allowing for easy replacement and maintenance, making it suitable for versatile workpiece finishing.

Features:

Customized 2-meter extended design, ideal for large or elongated workpieces.

Double-chamber structure enables simultaneous processing of different workpieces or segmented operations.

Adjustable chamber length according to workpiece requirements.

Detachable internal fixtures for easy replacement, cleaning, and maintenance.

Enhances finishing efficiency while providing flexible applications.

Customized Equipment – Vibratory Defoaming Machine PVD-A

Description:
The PVD-A vibratory defoaming machine is a customized solution designed to eliminate foam on liquid surfaces, allowing liquids to quickly return to a stable state. Utilizing vibration principles, it effectively breaks bubble structures, improves surface quality, and enhances process stability.

Features:

Specifically designed to address foam issues on liquid surfaces.

Rapid foam elimination through vibration technology.

Restores liquid stability to prevent interference with processing.

Customizable design according to customer requirements.

Applicable for grinding liquids, cleaning solutions, or other foam-sensitive processes.

Customized Equipment – Stainless Steel Sink

Description:
We provide customized stainless steel sinks tailored to customer requirements. Made of high-quality stainless steel, the sinks feature a simple and durable design, combining aesthetics with functionality. They are suitable for various industries and can be flexibly designed in terms of size and configuration.

Features:

Tailor-made according to customer requirements.

Constructed with high-quality stainless steel.

Minimalist appearance with durability.

Suitable for a wide range of industrial applications.

Flexible customization of size and structural design.

Customized Equipment – Adjustable Horizontal Vibratory Finishing Machine

Description:
This customized adjustable horizontal vibratory finishing machine is designed for processing wooden chair legs and backrests. The tank has a total length of 2000mm and can be flexibly adjusted to operate as one, two, or three compartments depending on the workpiece length, enhancing efficiency and versatility.

Features:

Specially designed for wooden products such as chair legs and backrests.

Large tank capacity with a total length of 2000mm.

Adjustable compartments: single, double, or triple, depending on workpiece length.

Flexible application for different workpiece sizes.

Customized design to meet specific processing requirements.

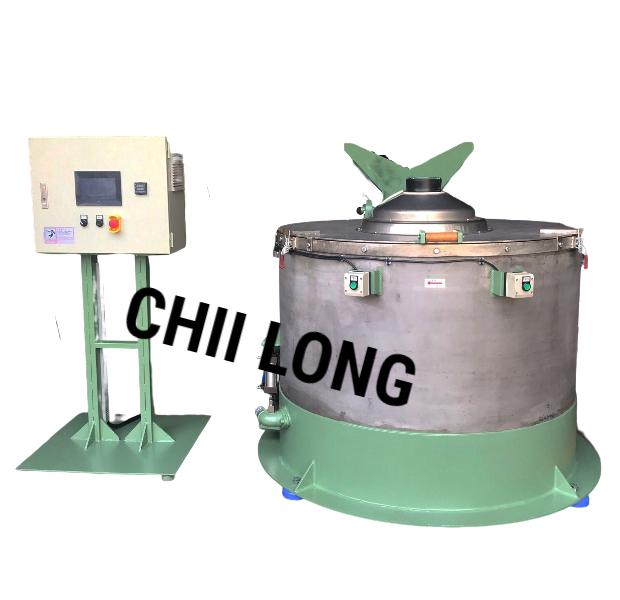

Customized Equipment – Yarn Package Dehydration & Drying Machine D-1200

Description:
The D-1200 yarn package dehydration and drying machine is designed for the dehydration process after yarn dyeing. Developed and customized according to customer requirements, it can handle up to 42 yarn packages per cycle. Equipped with a user-friendly HMI (Human-Machine Interface), the machine ensures convenient operation. It features an IE3 high-efficiency motor and an inching press design, providing safe and easy control for operators. Suitable for various yarn dehydration applications, the D-1200 offers both reliability and high performance.

Features:

Specially designed for dehydration after yarn dyeing.

Large capacity: accommodates up to 42 yarn packages per batch.

Intuitive HMI control for ease of operation.

Equipped with an IE3 high-efficiency motor for energy savings.

Inching press control for enhanced safety and convenience.

Customizable design to meet diverse yarn dehydration requirements.

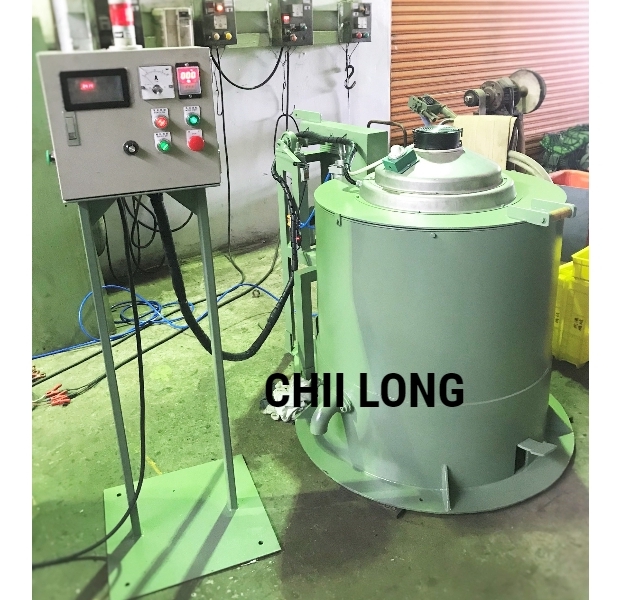

Customized Equipment – Flat Cover Oil Extractor D-800 (Without Drying)

Customer-Oriented Design:

This machine is designed exclusively for oil extraction (without drying function).

Optional stepless speed control available.

Optional safety start and emergency stop switch.

Workpieces are secured with custom fixtures to prevent damage during operation.

Applications:

Suitable for dehydrating metal parts after grinding, oil washing, water rinsing, or rust-preventive liquid treatment.

Essential equipment for electroplating plants and metal finishing workshops.

Description:
This machine is designed to reduce manual wiping, specifically for tool storage boxes and similar workpieces. Custom fixtures are designed according to the object’s dimensions, combined with an automatic lid-opening system, greatly enhancing usability and workflow efficiency.

Features:

Replaces manual wiping, saving significant labor.

Custom fixtures tailored to workpiece dimensions.

Automatic lid-opening for smooth operation.

Suitable for tool boxes and various workpieces requiring fast dehydration and drying.

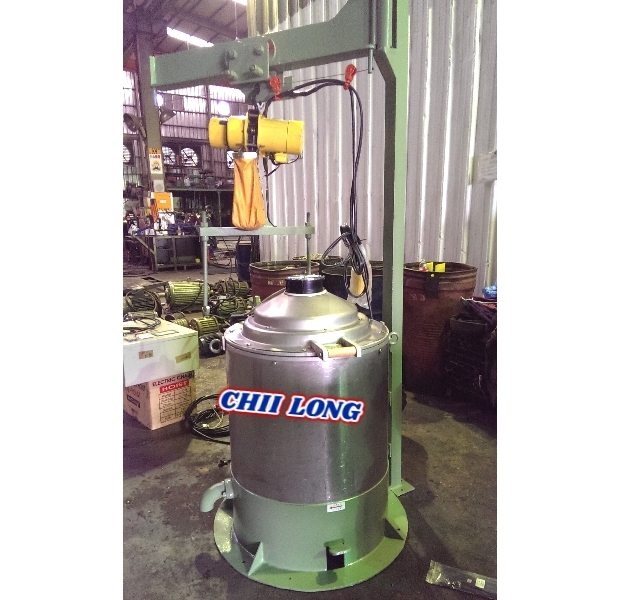

Customized Equipment – Overhead Crane Dehydration & Drying Machine DC

Features:

Equipped with a small overhead crane to meet customer-specific requirements.

Optional stepless speed control and soft start function to prevent product damage.

Dehydration and drying can be performed simultaneously, leaving no watermarks or stains, while enhancing product gloss and quality.

Applications:

Suitable for dehydrating and drying various metal parts after polishing, oil washing, water washing, or anti-rust immersion.

An essential drying machine for electroplating and polishing factories.

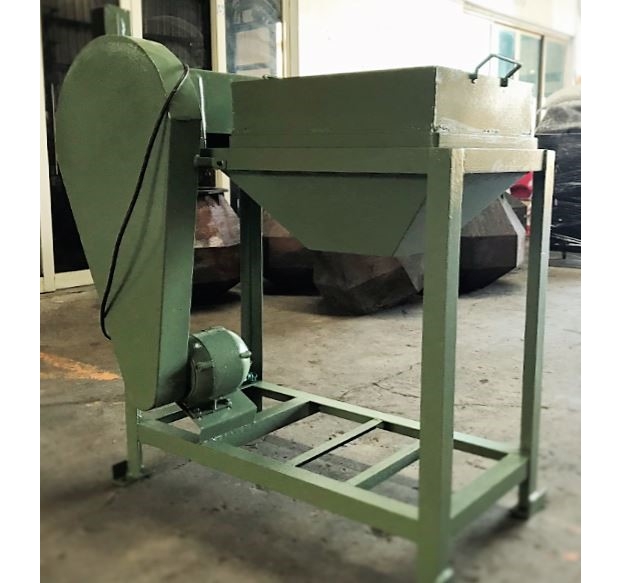

Features:

Modified from a standard vibratory separator according to customer requirements.

Equipped with a dust cover and dust extraction fan to effectively reduce dust dispersion and improve the working environment.

Cost-effective design, providing the most practical machine at the lowest possible price.

Applications:

Suitable for screening and separating various workpieces or media.

Especially ideal for factories requiring both separation and dust collection after polishing or grinding processes.

Customized S1 Vibratory Screening & Conveying Separator

Features:

Equipped with a conveyor belt feeding system for convenient automated loading.

Quick-clamp design for the screening mesh, allowing fast replacement and improved efficiency.

Cylinder gate valve installed at the inlet for precise feeding control.

Integrated frequency converter and timer, enabling adjustable vibration speed for optimal screening performance.

Applications:

Suitable for separating and conveying workpieces and media after polishing or grinding.

Ideal for factories requiring continuous production and automated sorting processes.

Customized Vibratory Screening & Sorting Machine SP-1

Features:

Utilizes a forward and backward pushing mechanism to improve screening efficiency.

Effectively separates iron chips from workpieces, preventing mixing and ensuring higher processing quality.

Simple structure with easy operation and maintenance, providing excellent durability.

Applications:

Suitable for separating workpieces and iron chips after metal processing.

Ideal for post-processing cleaning and sorting in turning, milling, and drilling operations.
