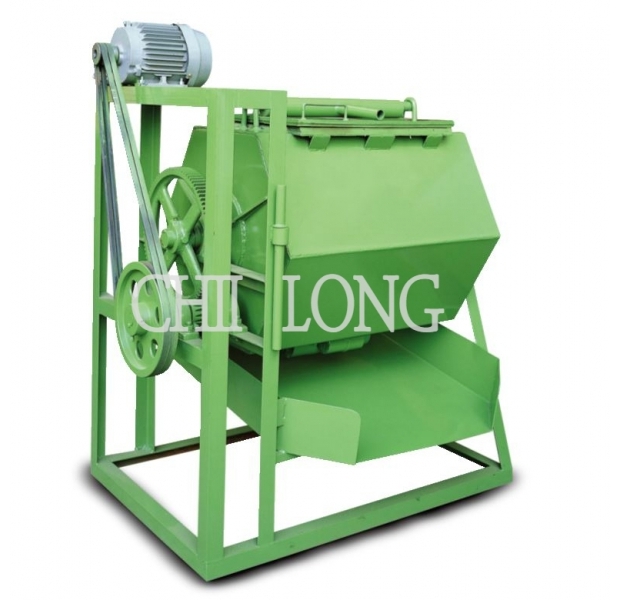

Rotary Barrel Grinding Machine

Features:
• Adopts a horizontal rotary barrel. The barrel can be equipped with or without an inner lining, providing different functions. When the inner barrel is lined with rubber, it is acid-/alkali-resistant, wear-resistant, and prevents workpieces from colliding.
• Without an inner lining, the barrel is suitable for steel balls or steel workpieces, as it strengthens cutting force and achieves greater grinding efficiency.
• The barrel body can rotate freely and be set at a proper incline, making material discharge convenient.
• Among the grinding machine series, this is the simplest and most user-friendly model, ideal for processing, and offers the most cost-effective purchase price.
Applications:
• Suitable for forged, cast, or sand-cast workpieces that require strong cutting power.
• Designed for grinding applications such as oxide scale removal, deburring, fine grinding, chamfering, and polishing.

Rotary Barrel Finishing Machine

Features

Barrel can rotate freely with optional forward/reverse inching control, allowing easy adjustment to the discharge position for convenient unloading (optional).

Adjustable rotation speed with stepless control to meet required processing conditions (optional).

Elegant machine design with built-in safety features to prevent potential hazards.

Control panel can be customized to meet customer requirements and comply with CE international standards.

Available in full stainless-steel construction, suitable for food-related industries.

Applications

Ideal for smaller workpieces with multiple flat surfaces or parts prone to overlapping, enabling efficient multi-angle grinding.

Stainless-steel versions are widely used in food-related applications, such as:

Cleaning barbecue grills (BBQ mesh) in restaurants.

Food preparation processes like kimchi making or mixing ingredients.

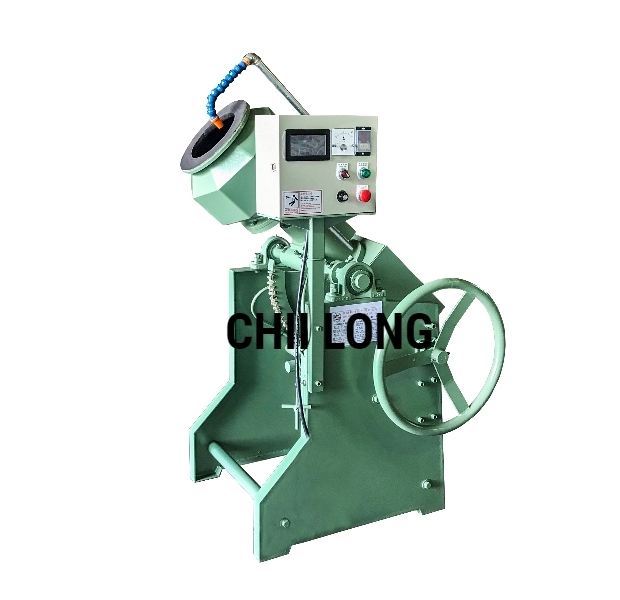

Manual Tilting Hexagonal (Octagonal) Rotary Barrel Finishing Machine
Features
Optional stepless speed control for flexible adjustment of rotation speed.
Manual tilting barrel design for easy material discharge.
Simple, safe, and user-friendly operation.
Applications
Suitable for small workpieces such as jewelry and accessories.
Ideal for processes including oxide layer removal, fine grinding, deburring, and chamfering.

雙連滾桶迴轉研磨機

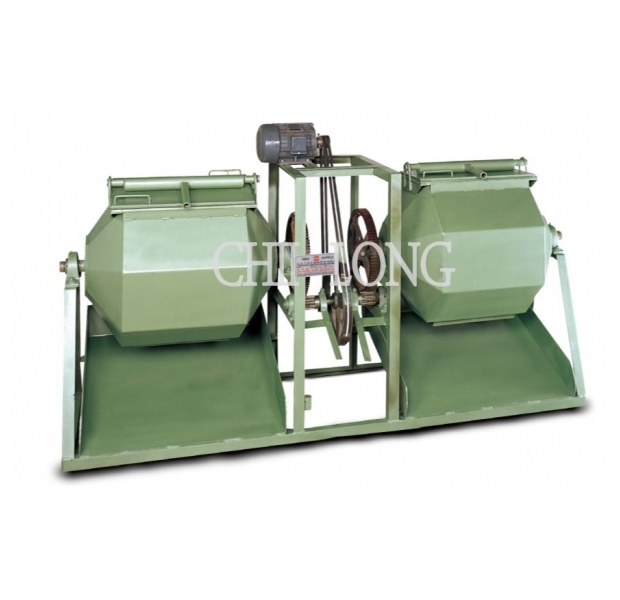

Double-Barrel Rotary Finishing Machine

特點 (Features)

採用水平式迴轉桶，桶內可選擇有內襯或無內襯，功能不同。

有橡膠內襯： 耐酸鹼、耐磨損，並可防止工件碰撞損傷。

無內襯： 適合搭配鋼珠或鋼鐵製品，能加強切削力，達到更佳研磨效果。

桶身可任意迴轉，並具適當斜度，方便下料操作。

為研磨機系列中最簡單、操作方便的機型，具高效能與經濟性。

Features (English)

Equipped with horizontal rotary barrels, available with or without inner lining for different functions.

Rubber lining: Resistant to acid and alkali, wear-resistant, and prevents workpiece collision.

Without lining: Suitable for use with steel media or steel workpieces, enhancing cutting force for greater finishing efficiency.

Barrels can rotate freely with adjustable tilt angle for easy discharge.

The most simple and user-friendly model in the finishing machine series, offering both high performance and cost efficiency.

用途 (Applications)

適合鍛造、鑄造、翻砂等需要強大切削力的工件處理。

去除黑膜、黑頭，以及進行細磨、倒角、拋光等研磨作業。

Applications (English)

Ideal for forged, cast, and sand-casted workpieces requiring strong cutting force.

Used for oxide layer removal, scale removal, fine grinding, chamfering, and polishing operations.

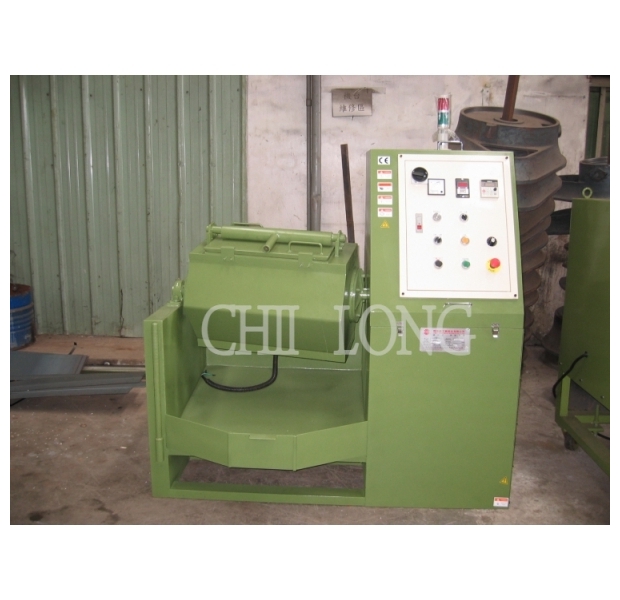

特點 / Features

採用傾斜式迴轉桶，桶內覆橡膠內襯，可耐酸鹼、耐磨損，並可防止工件碰撞。
Equipped with an inclined rotary barrel with rubber lining, providing acid and alkali resistance, wear resistance, and protection against workpiece collision.

桶身可任意迴轉，並具正反寸動功能，可調整至適當的出料口位置；同時可快速調整轉速，以達到所需研磨效率。
Barrel can rotate freely with forward/reverse inching function to position at the proper discharge outlet; rotation speed can be quickly adjusted to achieve the desired finishing effect.

控制箱具備時間控制、電源、運轉指示燈等功能，並符合 CE 國際安全標準。
Control panel includes timer, power switch, operation indicator, and complies with CE international safety standards.

機械外觀設計大方，並具備防護措施，以避免可能發生的公共安全事故。
Elegant machine design with safety measures to prevent potential public safety incidents.

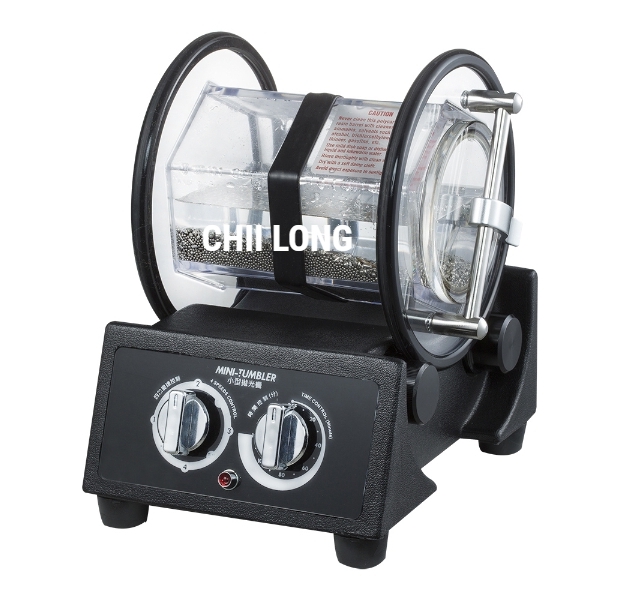

特點 (Features)

本機有四段變化速度功能，針對不同金屬厚薄或軟硬程度作速度選擇，不致造成表面變形。
Equipped with four adjustable speed levels, allowing selection based on metal thickness and hardness to prevent surface deformation.

時間操控由零到120分鐘機械式控制。
Mechanical timer control ranging from 0 to 120 minutes.

速度的控制備有4段選擇設定，每隔中間位置設有暫停可隨時停止準備取物。
Four-level speed control with intermediate stop positions, enabling operators to pause at any time for easy part retrieval.

每隔45秒會自動正逆旋轉，目的是要使一些細小或平面物類能作3D轉動徹底全面拋光。
Automatic forward/reverse rotation every 45 seconds ensures small or flat parts achieve 3D movement for thorough and uniform polishing.

機座採用鋁合金製造外覆黑色PU皮質材料保護，不怕任何酸鹼環境，長久使用永保如新。
The base is made of aluminum alloy with a black PU leather coating, resistant to acid and alkali environments, ensuring long-lasting durability and a like-new appearance.

六角滾桶PC材質 堅固耐撞擊。
The hexagonal barrel is made of PC material, strong and impact-resistant.

特點:
*桶身任意迴轉,並可調整正反轉寸動功能調整到適當的出料口位置,使下料更為方便。可任意調整迴轉速度,達到所要求旋轉速度。
*機械外觀大方,並防止可能發生之公共安全事件發生。
*控制箱功能可依客戶需求製作可合乎CE國際標準。
*可製作全白鐵、食品相關產業適用。
用途:
*適用較小工件且平面多、容易相疊之工件、產品,適合多角度之研磨。
*白鐵機械、適用於燒烤店清洗燒烤網、製作泡菜、食品攪拌...等。

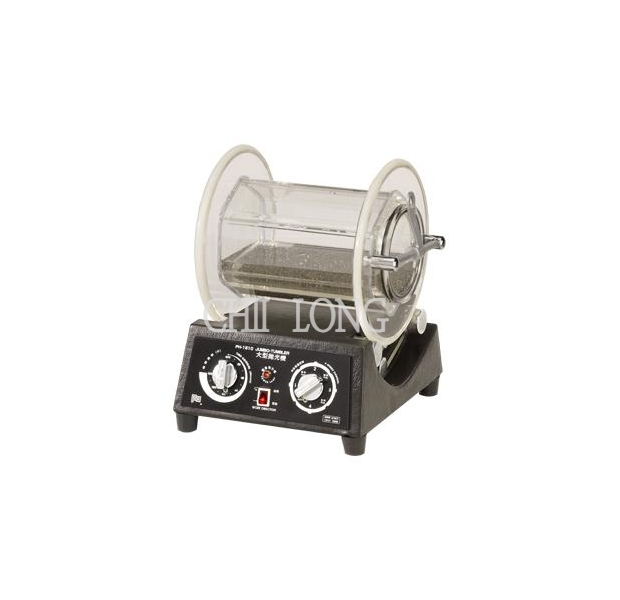

Features

Equipped with a four-speed control function, allowing selection based on the thickness or hardness of different metals, preventing surface deformation.

Mechanical timer control ranging from 0 to 120 minutes (jewelry polishing is typically completed within 20 minutes with a brilliant finish).

Four-speed settings with intermediate pause positions for easy stopping and part retrieval.

Automatically alternates forward and reverse rotation every 45 seconds, enabling small or flat workpieces to achieve full 3D polishing. (Equipped with a switch to disable alternating rotation and run in single direction if desired.)

The machine base is made of aluminum alloy with black PU leather coating, resistant to acidic or alkaline environments, ensuring long-lasting durability.

Handcrafted hexagonal barrel made of high-transparency acrylic with 10mm thickness, providing excellent durability and sealing performance.

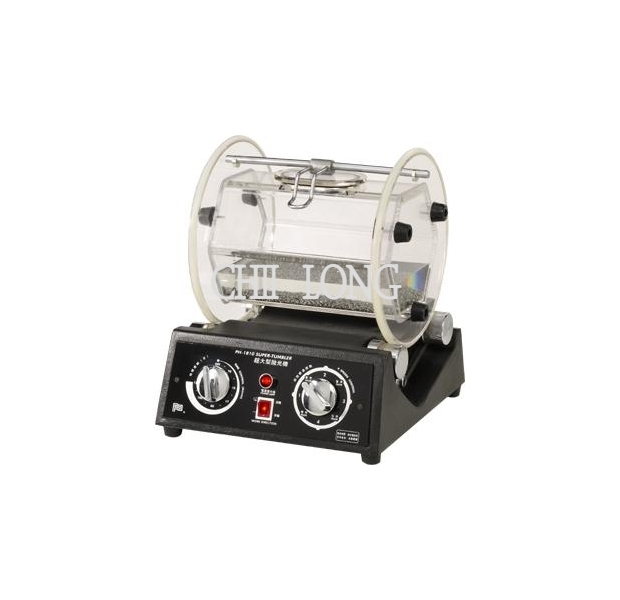

Features:

Equipped with four adjustable speed levels, allowing selection based on metal thickness or hardness to prevent surface deformation.

Mechanical timer control from 0 to 120 minutes (ideal for jewelry polishing, which can achieve a perfect shine within 20 minutes).

Four speed settings with intermediate pause positions, enabling users to stop at any time for easy part retrieval.

Automatic forward and reverse rotation every 45 seconds, ensuring small or flat workpieces achieve thorough 3D polishing. (Includes a switch to disable auto-reverse for single-direction operation).

Base constructed from aluminum alloy, coated with black PU leather for protection, resistant to acidic and alkaline environments, ensuring long-lasting durability.

Handcrafted hexagonal barrel made of high-transparency 10mm thick acrylic, offering excellent strength, impact resistance, and optimal sealing.

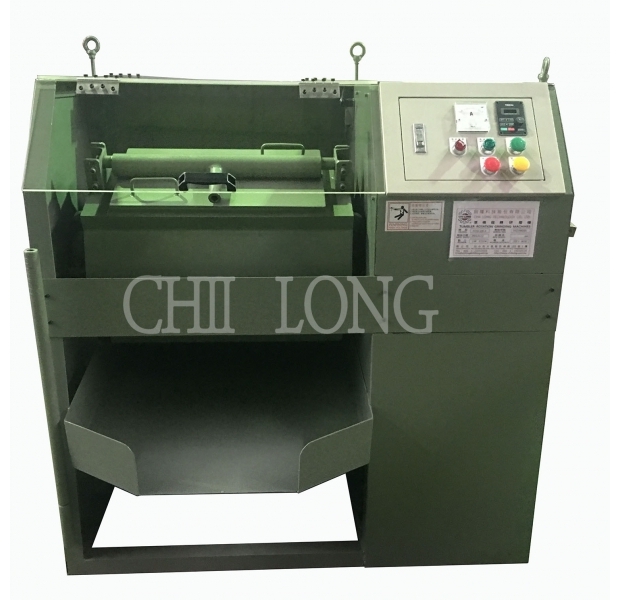

特點 (Features)

傾斜式迴轉桶設計，提升工件翻滾效率，加速研磨與拋光效果。
Inclined rotary barrel design enhances tumbling efficiency, speeding up grinding and polishing processes.

桶內可覆橡膠內襯，具 耐酸鹼、耐磨性，並能防止工件碰撞損傷。
Barrel lined with rubber for acid/alkali resistance, wear resistance, and protection against workpiece collision.

桶身可任意迴轉，並可調整 正反寸動功能，將桶口定位至適當的出料位置，下料快速方便。
The barrel can rotate freely with forward/reverse inching function, allowing precise positioning at the discharge port for easy unloading.

速度可任意調整，達到所需的旋轉速度以適應不同工件需求。
Rotational speed can be adjusted to meet different finishing requirements.

控制箱功能齊全：配備時間控制、電源、運轉指示燈，並可依需求製作，符合 CE 國際標準。
Equipped with control box functions including timer, power, and operation indicators. Can be customized to comply with CE international standards.

外觀設計大方，結構堅固，並考量公共安全。
Elegant appearance, robust structure, with safety features to prevent potential hazards.

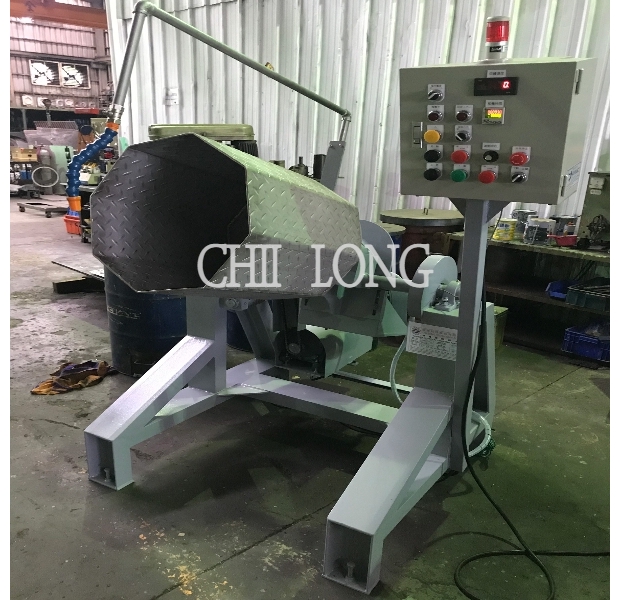

The finishing barrel size can be customized according to customer requirements, with an optional universal water inlet spray pipe.

The entire machine is controlled via a circuit panel, and the finishing barrel can be tilted to the desired angle for easy loading and unloading.

Equipped with a digital inverter, allowing frequency adjustment to achieve the desired finishing effect.

Application: Suitable for small workpieces; capable of oxide layer removal, fine grinding, deburring, and chamfering.

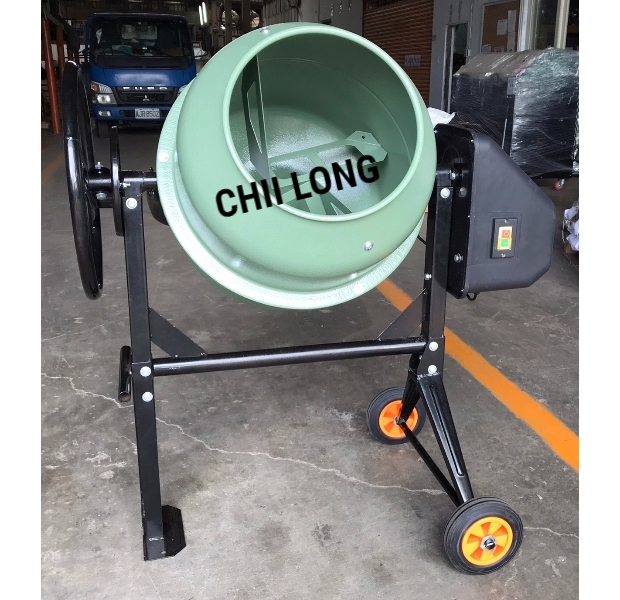

Features:

Users can adjust the drum’s tilting angle as needed; suitable for mixing both dry and wet materials.

Compact and lightweight design makes the machine easy to move and store.

The mixing drum can be manufactured in stainless steel for enhanced durability and hygiene.

Applications:

Widely applicable in the food industry, cement industry, horticulture, and for general material mixing purposes.
