Long-Stroke Tilting Conveyor (“Giraffe”)-CO-1

Long-Stroke Tilting Conveyor (“Giraffe”)-CO-1

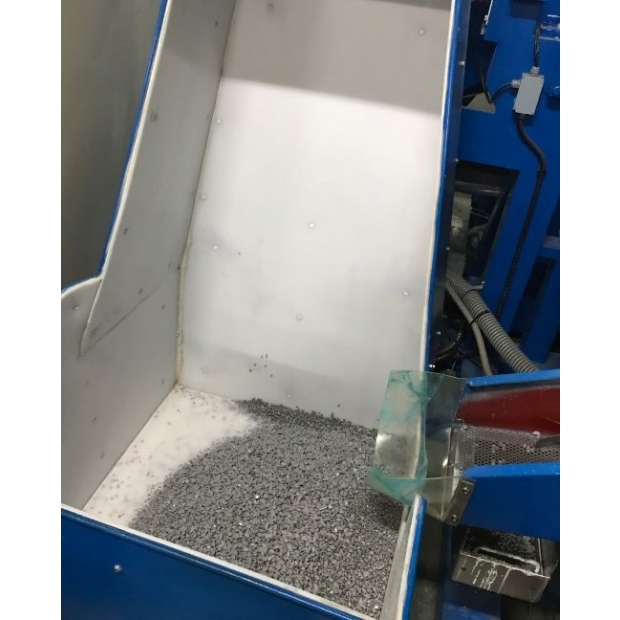

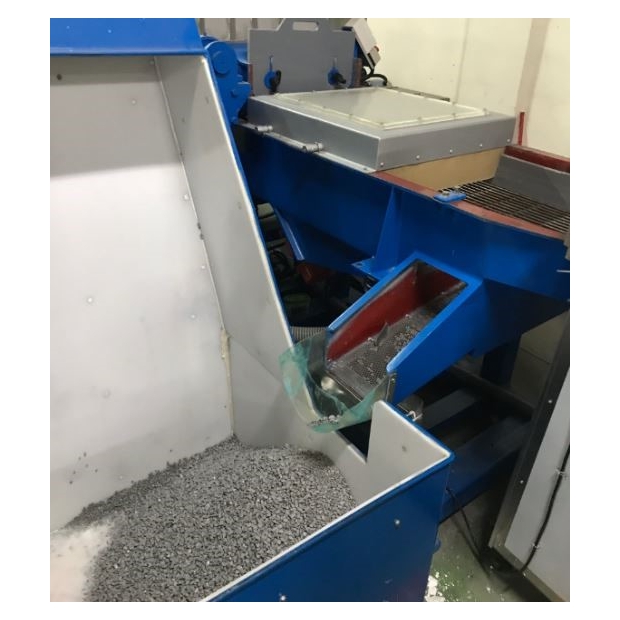

“The workpieces and grinding stones to be processed are collected in the lower material chamber, then automatically discharged and conveyed by a hydraulic tilting system.”
/
/
/
  • g445.jpg
  • 323444.jpg
  • 1585280547IJR0O1.jpg
DETAIL
“The workpieces and grinding stones to be processed are collected in the lower material chamber, then automatically discharged and conveyed by a hydraulic tilting system.”

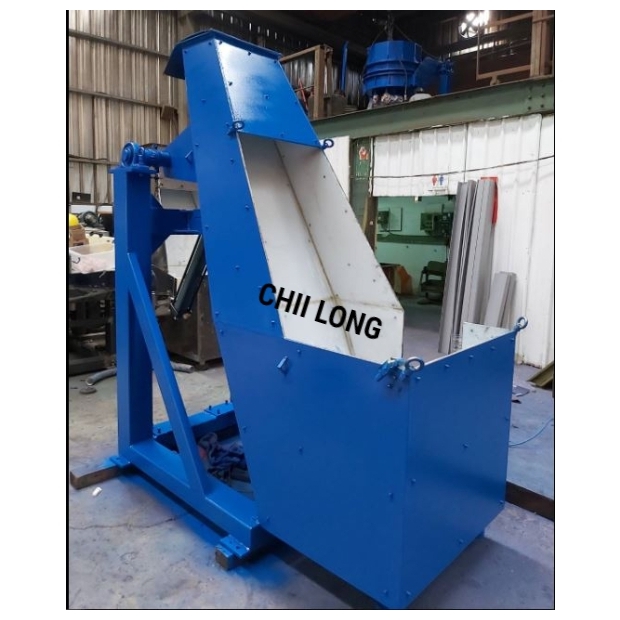

Long-Stroke Tilting Conveyor (“Giraffe”)

Chiilong Technology’s Long-Stroke Tilting Conveyor, nicknamed the “Giraffe” for its tall and extended structure, is engineered for efficient bulk material transfer and discharge at elevated heights. Its long-stroke vibration mechanism ensures smooth conveying and precise tilting for unloading materials.

Key Features

  • Extended Stroke Design – Ideal for lifting and discharging materials at higher elevations.

  • Tilting Function – Enables controlled unloading into bins, hoppers, or processing lines.

  • Stable & Durable – Heavy-duty construction ensures reliability under continuous operation.

  • Customizable – Available in different tray sizes, tilt angles, and materials.

  • Versatile Applications – Suitable for integration with vibratory finishing machines, packaging lines, and automated systems.

Applications

  • Bulk material discharge in manufacturing plants

  • Integration with polishing, grinding, or finishing machines

  • Food, chemical, and metal industries requiring elevated transfer solutions
