| (SHB/SOB) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model |
Type |
(Hp) Motor |
R.P.M |
(Kw) Watt |
(mm) Width |
(Kg) Fill Volume |
(mm) Barrel Diameter |
||||||
| SHB SOB |
50 | 1 | 40 | 0.75 | 1090 x600 x 1200 | 50L x 60% | 550 x 270 | ||||||
| 100 | 1 | 40 | 0.75 | 1280 x 850 x 1400 | 100L x 60% | 780 x 425 | |||||||
| 150 | 2 | 40 | 0.75 | 1250 x 850 x 1400 | 150L x 60% | 720 x 515 | |||||||
| 250 | 3 | 30 | 1.5 | 1480 x 865 x 1400 | 250L x 60% | 920 x 560 | |||||||
| 350 | 3 | 30 | 1.5 | 1440 x 1000 x 1600 | 350L x 60% | 830 x 760 | |||||||
| 500 | 5 | 25 | 2.25 | 1550 x 1300 x 1600 | 500L x 60% | 950 x 840 | |||||||
| 750 | 10 | 25 | 5.63 | 2205 x 1300 x 1800 | 750L x 60% | 1400 x 1020 | |||||||
| 1000 | 15 | 20 | 7.5 | 2310 x 1360 x 2327 | 1000L x 60% | 1550 x 1300 | |||||||
Rotary Barrel Grinding Machine

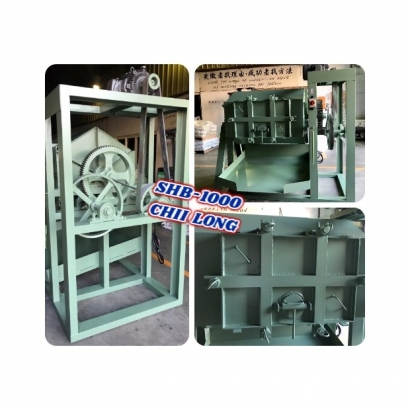

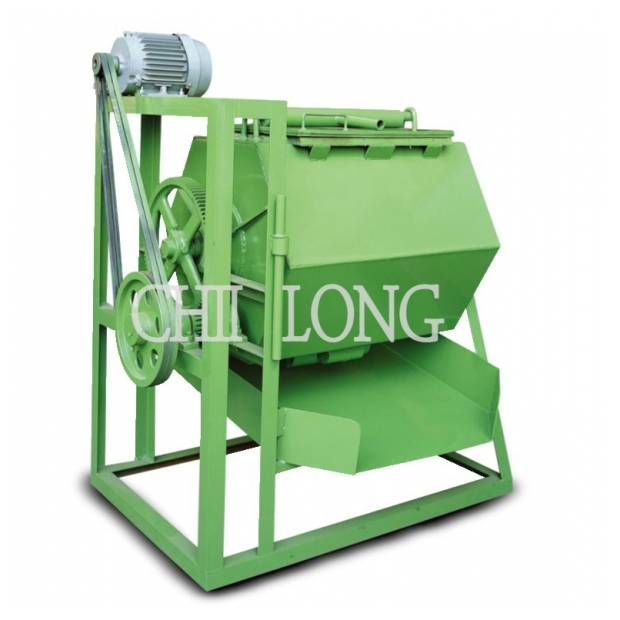

Hexagonal/Octagonal Single-Link Rotary Grinding Machine-SHB/SOB
Hexagonal/Octagonal Single-Link Rotary Grinding Machine-SHB/SOB
Features:
• Adopts a horizontal rotary barrel. The barrel can be equipped with or without an inner lining, providing different functions. When the inner barrel is lined with rubber, it is acid-/alkali-resistant, wear-resistant, and prevents workpieces from colliding.
• Without an inner lining, the barrel is suitable for steel balls or steel workpieces, as it strengthens cutting force and achieves greater grinding efficiency.
• The barrel body can rotate freely and be set at a proper incline, making material discharge convenient.
• Among the grinding machine series, this is the simplest and most user-friendly model, ideal for processing, and offers the most cost-effective purchase price.
Applications:
• Suitable for forged, cast, or sand-cast workpieces that require strong cutting power.
• Designed for grinding applications such as oxide scale removal, deburring, fine grinding, chamfering, and polishing.
• Adopts a horizontal rotary barrel. The barrel can be equipped with or without an inner lining, providing different functions. When the inner barrel is lined with rubber, it is acid-/alkali-resistant, wear-resistant, and prevents workpieces from colliding.
• Without an inner lining, the barrel is suitable for steel balls or steel workpieces, as it strengthens cutting force and achieves greater grinding efficiency.
• The barrel body can rotate freely and be set at a proper incline, making material discharge convenient.
• Among the grinding machine series, this is the simplest and most user-friendly model, ideal for processing, and offers the most cost-effective purchase price.
Applications:
• Suitable for forged, cast, or sand-cast workpieces that require strong cutting power.
• Designed for grinding applications such as oxide scale removal, deburring, fine grinding, chamfering, and polishing.
