| 滾桶迴轉研磨機(DOB) | ||||||
|---|---|---|---|---|---|---|
| 機種 Model |
重量(Kg) Weight |
馬力(Hp) Motor |
功率(Kw) Watt |
機台尺寸(mm) Width |
充填量(Kg) Fill Volume |
桶徑(mm) Barrel Diameter |
| DHB 六角雙聯 DOB 八角雙聯 |
50 | 1 | 0.75 | 2080 x600 x 1200 | 50L x 60% | 550 x 270 |
| 100 | 2 | 1.5 | 2260 x 800 x 1400 | 100L x 60% | 780 x 425 | |
| 150 | 2 | 1.5 | 2400 x 850 x 1400 | 150L x 60% | 720 x 515 | |
| 250 | 3 | 2.25 | 2660 x 865 x 1400 | 250L x 60% | 920 x 560 | |
| 350 | 3 | 2.25 | 2740 x 1000 x 1700 | 350L x 60% | 830 x 760 | |
| 500 | 5 | 9.75 | 2960 x 1300 x 1700 | 500L x 60% | 950 x 840 | |

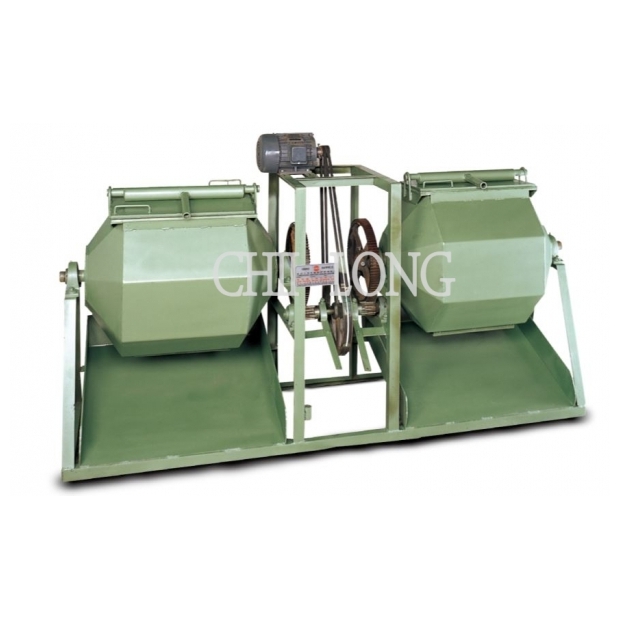

雙連滾桶迴轉研磨機
Double-Barrel Rotary Finishing Machine
特點 (Features)
-
採用水平式迴轉桶，桶內可選擇有內襯或無內襯，功能不同。
-
有橡膠內襯： 耐酸鹼、耐磨損，並可防止工件碰撞損傷。
-
無內襯： 適合搭配鋼珠或鋼鐵製品，能加強切削力，達到更佳研磨效果。
-
-
桶身可任意迴轉，並具適當斜度，方便下料操作。
-
為研磨機系列中最簡單、操作方便的機型，具高效能與經濟性。
Features (English)
-
Equipped with horizontal rotary barrels, available with or without inner lining for different functions.
-
Rubber lining: Resistant to acid and alkali, wear-resistant, and prevents workpiece collision.
-
Without lining: Suitable for use with steel media or steel workpieces, enhancing cutting force for greater finishing efficiency.
-
-
Barrels can rotate freely with adjustable tilt angle for easy discharge.
-
The most simple and user-friendly model in the finishing machine series, offering both high performance and cost efficiency.
用途 (Applications)
-
適合鍛造、鑄造、翻砂等需要強大切削力的工件處理。
-
去除黑膜、黑頭，以及進行細磨、倒角、拋光等研磨作業。
Applications (English)
-
Ideal for forged, cast, and sand-casted workpieces requiring strong cutting force.
-
Used for oxide layer removal, scale removal, fine grinding, chamfering, and polishing operations.
