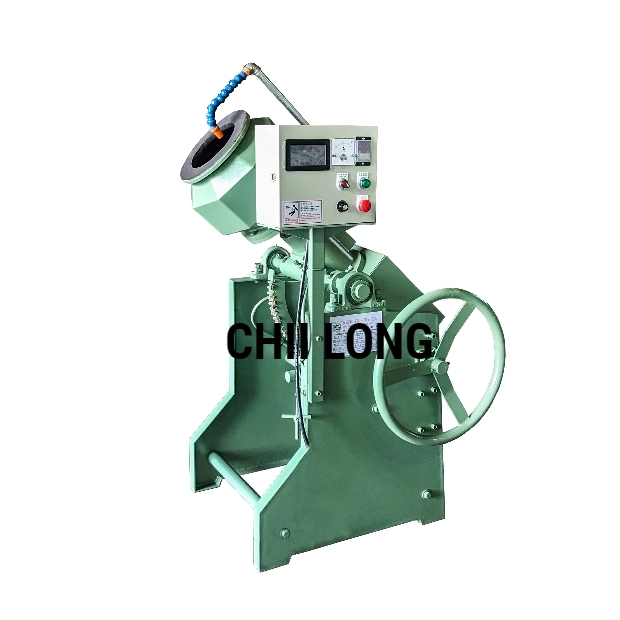

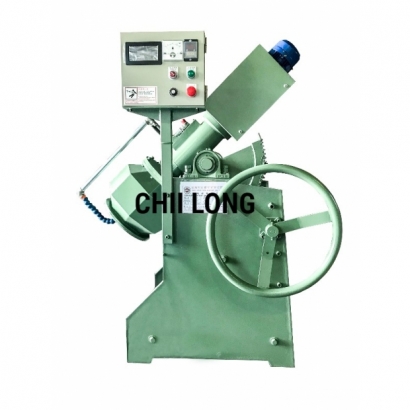

Manual Tilting Hexagonal (Octagonal) Rotary Barrel Finishing Machine
Product Overview
The Manual Tilting Hexagonal (Octagonal) Rotary Barrel Finishing Machine is designed for small to medium-sized workpieces requiring deburring, chamfering, oxide removal, or fine surface finishing. Its hexagonal or octagonal barrel design ensures multi-angle tumbling for uniform finishing quality. The manual tilting barrel allows safe and convenient unloading, making it ideal for jewelry, accessories, and precision parts industries.
Key Features
-
Stepless Speed Control (Optional): Flexible barrel speed adjustment to meet various finishing requirements.
-
Manual Tilting Barrel: Easy and safe material discharge, reducing operator effort.
-
Hexagonal/Octagonal Design: Ensures multi-angle tumbling for consistent grinding and polishing.
-
Compact & Safe: Easy to operate and suitable for workshops of all sizes.
-
Customizable Design: Specifications can be tailored to customer requirements.
Applications
-
Jewelry & Accessories: Polishing rings, pendants, and small decorative items.
-
Precision Components: Effective for deburring and chamfering gears, screws, and electronic parts.
-
Surface Treatment: Oxide removal, fine grinding, and edge smoothing of small workpieces.
Optional Configurations
-
Frequency Converter (VFD): Enables variable speed control for optimized finishing and energy efficiency.
-
Digital Timer: Allows automated operation time setting, ensuring consistency and reducing manual supervision.
| 可斜式六角/八角(IO/IH型)諸元表 | ||||||
|---|---|---|---|---|---|---|
| 機型 Model |
重量(Kg) Weight |
馬力(Hp) Motor |
功率(Kw) Watt |
機台尺寸(mm) Width |
充填量(Kg) Fill Volume |
迴轉速 R.P.M |
| IH15-A | 100 | 0.5 | 0.37 | 1045 x 1050 x 1470 | 15L x 80% | 15~40 |
| IH25-A | 150 | 1 | 0.75 | 1070 x 1050 x 1470 | 25L x 80% | 15~40 |
| IH50-A | 250 | 2 | 1.5 | 1145 x 1050 x 1550 | 50L x 80% | 15~40 |
