迷你桌上型滾桶迴轉研磨機
Mini Desktop Rotary Barrel Finishing Machine
特點 (Features)
-
本機有四段變化速度功能，針對不同金屬厚薄或軟硬程度作速度選擇，不致造成表面變形。
Equipped with four adjustable speed levels, allowing selection based on metal thickness and hardness to prevent surface deformation. -
時間操控由零到120分鐘機械式控制。
Mechanical timer control ranging from 0 to 120 minutes. -
速度的控制備有4段選擇設定，每隔中間位置設有暫停可隨時停止準備取物。
Four-level speed control with intermediate stop positions, enabling operators to pause at any time for easy part retrieval. -
每隔45秒會自動正逆旋轉，目的是要使一些細小或平面物類能作3D轉動徹底全面拋光。
Automatic forward/reverse rotation every 45 seconds ensures small or flat parts achieve 3D movement for thorough and uniform polishing. -
機座採用鋁合金製造外覆黑色PU皮質材料保護，不怕任何酸鹼環境，長久使用永保如新。
The base is made of aluminum alloy with a black PU leather coating, resistant to acid and alkali environments, ensuring long-lasting durability and a like-new appearance. -

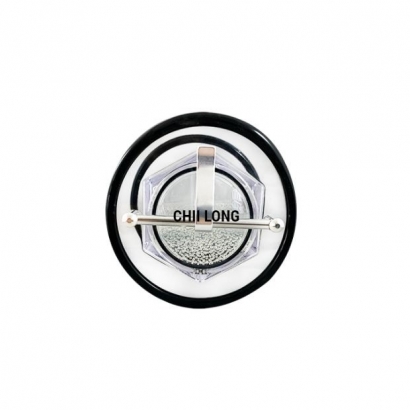

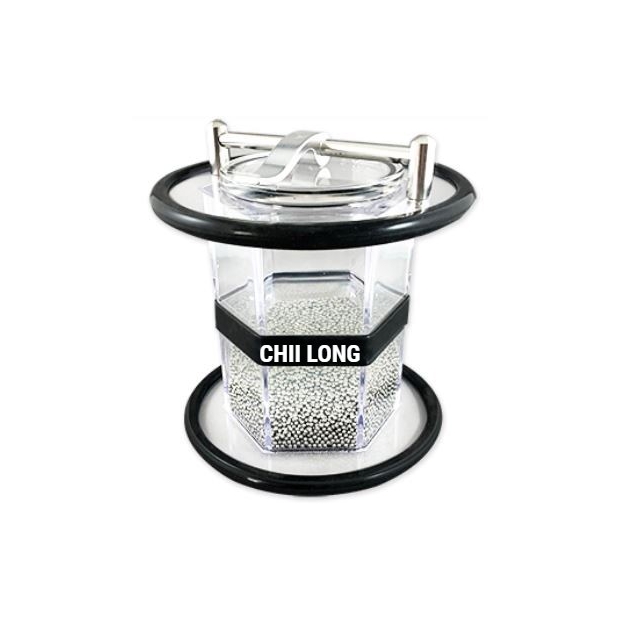

六角滾桶PC材質，堅固耐撞擊。
The hexagonal barrel is made of PC material, strong and impact-resistant.
規格 (Specifications)
-
滾桶尺寸 (Barrel Size): Ø180 × 160 mm
-
滾桶重量/容量 (Barrel Weight/Capacity): 1 kg / 1.3 L
-
機身尺寸/重量 (Machine Dimensions/Weight): 180 × 230 × 100 mm / 4.5 kg
-
馬達規格 (Motor Speed): 1800 rpm
-
變速 (Speed Control): 4 levels adjustable
-
時間控制 (Timer Control): 0–120 minutes
-
加工重量 (Processing Capacity): 0.2 kg
-
不鏽鋼珠使用量 (Stainless Steel Media Load): 1 kg
-
專利設計 (Patented Design): Beltless mechanism (No-belt patented design)
