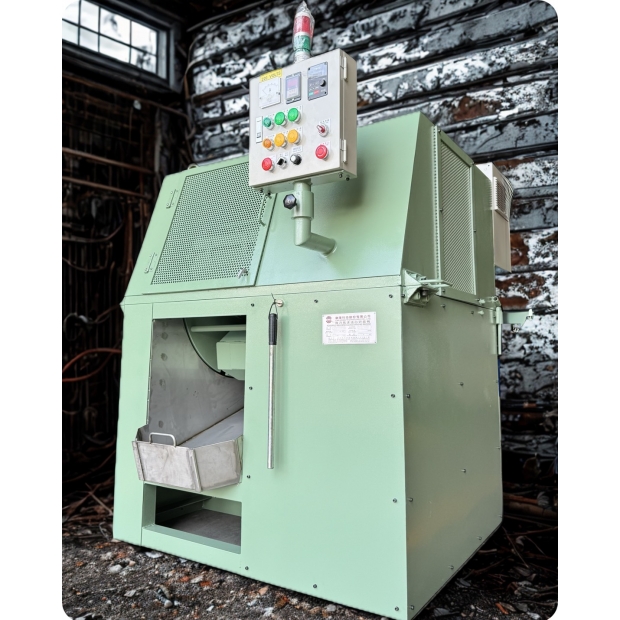

SHOK Series High-Speed Centrifugal Grinding Machine
Overview
The SHOK Series High-Speed Grinder is designed for efficient grinding with long service life, low noise, and simple operation. Suitable for day-and-night operation, the machine requires no dedicated operator, making it highly reliable for continuous use.Product Line
-
High-Speed Centrifugal Grinder: Delivers high-efficiency grinding, extended durability, and low-noise operation for 24/7 productivity.
-
Vibratory Finishing Machine: Ideal for surface treatment of metals, plastics, and other materials, ensuring uniform grinding with strong cutting power.
-
Auxiliary Equipment: Including dehydrators, rotary barrels, and sorting machines to support the entire grinding process.
-
Consumables & Spare Parts: Grinding stones, polishing compounds, and vibration motors to meet diverse finishing needs.
Applications
Qilong’s grinding machines are widely applied in industries such as hardware, electronics, automotive parts, and medical instruments. They are especially suited for high-precision surface finishing requirements.
Qilong’s products have been exported internationally, and in 2019, the company successfully launched application cases for vibratory finishing agents, further demonstrating its technical expertise.
Key Features
Long Service Life & High Efficiency: Qilong machines are built with durable designs for continuous industrial use.
Strong Cutting Force & Uniform Grinding: Both centrifugal and vibratory machines ensure consistent quality, perfect for precision parts.
Time-Saving, Easy to Operate, Low Noise: User-friendly designs minimize operation complexity, while noise reduction ensures suitability for long-hour operations.
| 高速離心研磨機(OK-3600型)諸元表 | ||||||
| 機型 | 重量(Kg) | 馬力(Hp) | 功率(Kw) | 機台尺寸(mm) | 充填量(Kg) | 磨麗桶容量 |
| Model | Weight | Motor | Watt | Width | Fill Volume | Volume of Barrel |
| OK-3600-20 | 900 | 5 | 3.75 | 1340*1250*1480 | 60% | ≒20L |
| OK-3600-40 | 1050 | 5 | 3.75 | 1340*1250*1480 | 60% | ≒40L |
| OK-3600-60 | 1150 | 7.5 | 5.62 | 1340*1250*1480 | 60% | ≒60L |
| OK-3600-80 | 2160 | 7.5 | 5.62 | 1600*1600*1900 | 60% | ≒80L |
| OK-3600-160 | 3300 | 10 | 7.5 | 1720*1430*2100 | 60% | ≒160L |
