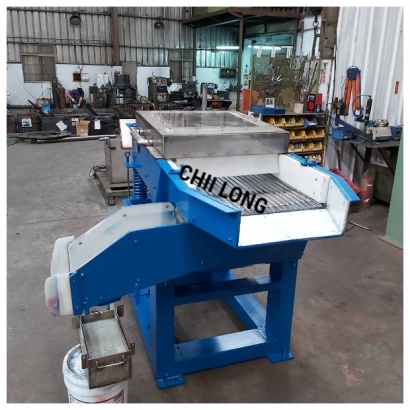

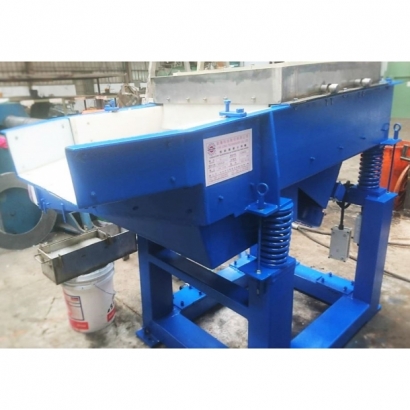

Features and Applications of Vibratory Washing & Screening Machine
Features
-
Vibratory Conveying & Washing:
Driven by a vibration system, workpieces and grinding stones move along the screen or trough while cleaning fluid (such as water or detergent) removes surface contaminants (cutting oil, grinding residues, or oxides).
Adjustable vibration frequency (typically 1000–3000 cycles/min) ensures efficient cleaning and conveying. -
Workpiece & Media Separation:
Equipped with sieves of different apertures, vibration separates workpieces from grinding stones, achieving an effective screening function.
Optional multi-layer screens allow further classification of workpieces or media by size. -
High-Efficiency Cleaning:
Integrated spray system or immersion tank ensures thorough removal of dirt from workpiece surfaces.
Cleaning fluid can be recycled with a filtration system to reduce waste and maintain cleanliness. -
Automation Design:
Can be integrated with feeding/discharging systems for continuous washing and screening, ideal for automated production lines.
Optional PLC control system regulates vibration frequency, cleaning fluid flow, and screening speed.
Applications
-
Post-Grinding Workpiece Treatment:
Suitable for metal parts (such as screws, nuts, gears, automotive parts) after vibratory grinding, barrel finishing, or polishing.
Removes residues of abrasives, oil, or chips while separating workpieces from grinding media (ceramic stones, plastic media, or steel balls).
Ensures clean surfaces ready for subsequent processes (such as plating or drying). -
Industrial Uses:
Widely applied in hardware processing, electroplating plants, grinding shops, or automotive part manufacturing, ensuring surface cleanliness and product quality. -
Other Applications:
Washing and screening of small plastic parts, ceramic components, or electronic parts to remove impurities and achieve classification.
Technical Specifications
-
Screen Aperture: 2–50 mm, customized based on workpiece and media size
-
Vibration System: Electromagnetic/mechanical vibration, frequency 1000–3000 cycles/min, amplitude 0.5–5 mm
-
Washing System: Spray or immersion type, cleaning fluid options include water, degreasers, or anti-rust agents; adjustable flow rate (5–50 L/min)
-
Capacity: 0.5–5 tons per hour (depending on model and material)
-
Material: 304 stainless steel for contact surfaces; frame available in carbon steel or stainless steel
