Automatic Lid-Opening Oil Extractor (Without Drying Function – Flat Lid)D-800

D-800 Automatic Lid-Opening Oil Extractor (Non-Drying Function – Flat Lid)

Product Introduction

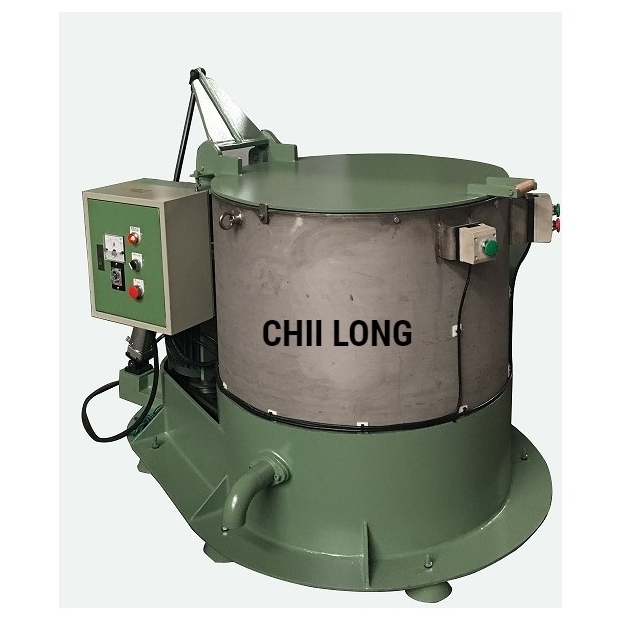

The D-800 Automatic Lid-Opening Oil Extractor is a customized machine designed specifically for oil removal from metal parts. Equipped with an automatic lid-opening system, it ensures convenient and efficient operation, making it ideal for electroplating and polishing industries. This model focuses exclusively on oil extraction without a drying function, tailored for specific processing needs.

Features

• Dedicated Oil Extraction: Specially designed for efficient oil removal, effectively eliminating surface oil or liquid residues from metal parts.

• Optional Stepless Speed Control: Allows flexible adjustment of rotation speed to suit different parts and processing requirements.

• Safety Design: Optional safety start and emergency stop switches enhance operational safety, protecting both operators and equipment.

• Fixture-Based Workpiece Holding: Uses fixtures to secure workpieces, preventing collisions or damage during operation and ensuring product quality.

Applications

• Versatile Oil Removal: Suitable for oil extraction after grinding, oil washing, water washing, or anti-rust treatment, ensuring clean and residue-free metal surfaces.

• Essential for Industry: Provides efficient oil removal solutions for electroplating plants, polishing workshops, and related industries—an indispensable machine for production lines.

Remarks

All specifications and performance values are for reference only. Actual performance is subject to the delivered equipment.

• 脫水烘乾機(D)諸元表
  機型    Model	重量(Kg)      Weight	馬力(Hp)           Motor	功率(Kw) Watt	機台尺寸(mm) Width	容量  Volume	內桶尺寸(mm)       Barrel Diameter	內桶高度(mm)   Barrel Diameter
  D-400	180	1	0.75	950x670x845	40Lx60%	405	320
  D-510	300	2	1.5	1130x850x970	65Lx60%	505	350
  D-630	430	5	3.75	1090x890x1100	130Lx60%	630	440
  D-800	500	7.5	5.62	1610x1170x1150	200Lx60%	800	400

  以上數值僅供參考，以實際機台為主。
